As I start thinking about the design of Skype for Business solutions it becomes apparent to me that its time for a new visio stencil. Having been a little reserved with the new images that were introduced in the Lync 2013 stencil I thought its time to embrace the new.

The official Office Viso Stencil published on 19/01/2015 can be found here.

Having taken a look at these I must say that these will need to grow on me. Not a big fan of the dark shadow looking images that represent the servers (yet!). Feels a bit gloomy to me, I need clean, open looking shapes.

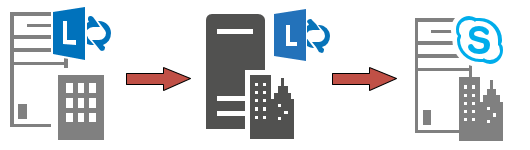

Below is an extract of the my Skype for Business stencil transformation

So what shapes are in the stencil?

• Skype for Business Servers, Roles and clients
• Anywhere 365 Servers
• Zeacom Servers
• Sonus SBCs
• Audiocodes SBCs
• All the usual Infrastructure and Server roles
• A bunch of Skype for Business\Lync related components

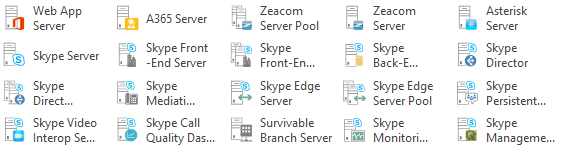

Here is a snippet of the shapes..

Of course I will update the library of shapes as and when needed. Happy to take on board suggestions.

Download S4B Stencil
