A tool to find ANY assigned numbers in Lync – L.U.R.I.A.

Published by

Paul Bloem

on


Overview

Find any number assigned in Lync. Of course there are numerous powershell scripts that will collect this information for you. This however is an application without the need for running Powershell or Logging in to the Lync servers (provided the core components are installed on the PC the tool is run from). Its a good way to extend basic searhing of name and number assignments without the need to run poweshell scripts manually, or collect information from a saved output file.

Using LURIA

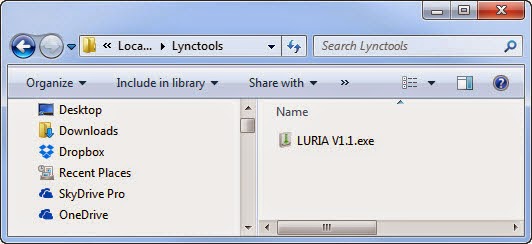

  1. Simply launch LURIA.exe (Lync – Line URI Assignment).

  2. Click on Query Lync to populate the data display window (Lync Core Components required for this).

  3. Once Query is complete, Lync Line URI details will be visible in the window. If the Window has no data then the core components may be missing or your account may not have permissions to query Lync. (TIP Scroll to the right to see what the number is assigned to eg. user, Private Line, RGS Workflow etc.)
  4. Use the search box to find any number or user

Requirements

Install the Lync core components of the PC that the tool will be run from. We like to nominate a Tool Server to run this on, also other items such as SEFAUtil.
The usual Lync RBAC permissions are required.

Credits to:-

Andrew Morpeth who provided his Lync Get All Assigned Numbers Script which forms the basis of this tool.
Grant McFarlane who provided assistance with coding and debugging

Revision History

Version 1.0 – Initial release
Version 1.1 – Added SIP Address Column to results window

Download

5 responses to “A tool to find ANY assigned numbers in Lync – L.U.R.I.A.”

  1. Thomas Starup Avatar
    Thomas Starup

    Where is the download link?

    Like

    Reply
  2. Paul Bloem Avatar
    Paul Bloem

    Wow, I only just posted the post and was still adding the download link. Anyway its there now. Please be sure to either run the tool from the Lync Front End or install the Lync Core components on the PC that LURIA will be run from. Be sure to provide me with feedback as I am still debugging.

    Like

    Reply
  3. guybachar Avatar
    guybachar

    works great in my lab environment (Lync 2013 STD).
    I think adding SipAddress column and Description column would also help, because in case such as CsExUMContact, you can't tell what is the object except of it's GUID.

    Like

    Reply
  4. Paul Bloem Avatar
    Paul Bloem

    I have added a SIPAddress column in V1.1, I don't want it to become too convoluted so will need to think about the briefest of descriptions prior to adding that.

    Like

    Reply
  5. Skype Admin Tools: LURIA 2.0 | UC Sorted Avatar
    Skype Admin Tools: LURIA 2.0 | UC Sorted

    […] Back in 2014 I released a tool named LURIA designed to lookup assigned numbers and policies for LyncSkype objects. You can find the original HERE. […]

    Like

    Reply
